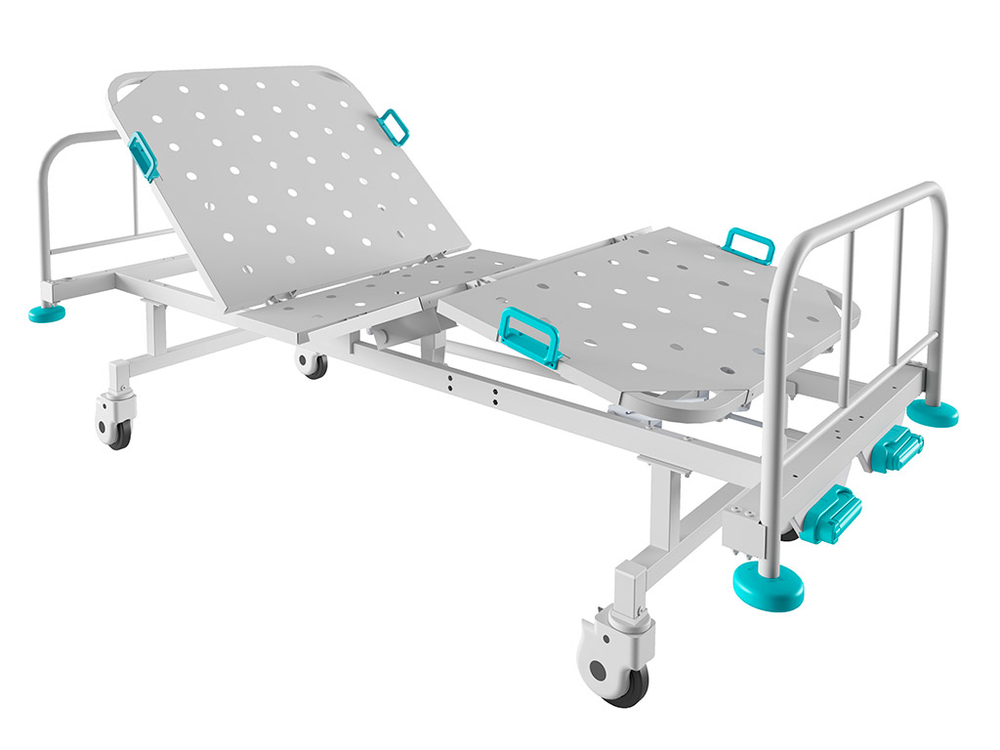

HILFE KM-04 Medical bed

Functional medical bed with mechanical adjustment of sections designed for care, diagnosis, treatment and monitoring of the patient in stationary medical institutions and at home

• a four-section stock made of perforated sheet with screw adjustment of sections, the frame is made of a profiled tube of rectangular section 50x25mm, coated with epoxy powder paint;
• mounted on 4 castors with a diameter of 125 mm, 2 wheels with brakes, wheels covered with gray rubber (non-marking on the floor);
• equipped with plastic restrictive bumpers D= 100 mm;
• dimensions of adjustable sections KM-04: 775 x 905mm dorsal, 375 x 905mm hip, 535 x 905mm leg
• the size of the fixed section of the bed bed 215×905 mm
• Section angle adjustment:

  - dorsal - from 0° to 70° stepless, screw mechanism

  - hip - from 0° to 40° stepless, screw mechanism

  - foot - from 0° to 20° mechanisms "Rastomat"
• Screw mechanisms are controlled by the rotation of the handles located under the footrest. Folding plastic handles. The position of the foot section is discretely regulated using a pair of Rastomat mechanisms.
• medical beds are delivered unassembled, corrugated cardboard packaging
• permissible static uniformly distributed load on the bed - up to 250 kg
• overall dimensions are given without bumpers
